Product Data Sheet

IT83111SHG



In today's modern and competitive business world, highly sophisticated computer systems are relied upon to perform multiple functions and applications including wide area networks (WAN), ATM's, point of sale systems (POS) and computer aided manufacturing. As the microprocessor "brain" of computer systems becomes more advanced and operates at increasingly faster speeds, precautions must be taken to protect this sensitive circuitry.

Microprocessor's Susceptible to Power Quality
Most users of microprocessor based equipment are not aware that they are susceptible to power quality problems. Furthermore, they are not aware of how problems with power quality can affect their microprocessor based systems. As microprocessor technology becomes more advanced, it becomes more susceptible to problems associated with the quality of power being provided.

Power quality disturbances such as spikes or surges, high frequency electrical noise, harmonics and ground contamination can cause numerous problems with computer driven systems. These problems include corrupted or lost data, lockups, crashes, and other unexplained system problems.

Patented Technology
SpikeShield Power Line Conditioners by Hubbell are specifically designed to protect today's sophisticated microprocessor based equipment from these damaging power disturbances. The power line conditioners from Hubbell feature patented Ground Zero Technology to help eliminate noise, spikes and harmonics and also provide a zero ground reference which is crucial to maintaining data integrity, system stability and high operating efficiency. The ground system is the "0" reference point for data access and transmission and must be free of contamination.

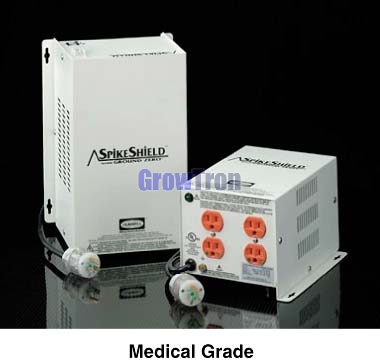

SpikeShield Power Line Conditioners with Ground Zero protection are available in Straight Blade, Twist-Lock®, Hard Wired and Medical Grade versions. The new line of conditioners are also available in 2 Amp through 20 Amp configurations. SpikeShield Power Line Conditioners are UL 1012 Listed for Power Supplies and Certified for CAN CSA-22.2, No. 107.1 Power Supplies. The Medical Grade models are UL Listed under 544 Professional Medical and Dental Equipment and cUL listed to CSA 22.2, No. 125 Electromedical Equipment.

Hubbell Wiring Device-Kellems Product Specifications
 Load Current Rating  8.3A (1000VA)
 Output Connection Type  Straight Blade/Medical Grade
 Input Voltage  120V AC
 Output Voltage  120V AC
 Height  6.50"
 Width  7.00"
 Depth  11.0"
 Weight  27 lbs.
 Tested under power to ANSI/IEEE C62.41 (Category A)  600V, 200A, 0.5msec. risetime, 100kHz decay.
 Tested under power to ANSI/IEEE C62.41 (Category B)  600V, 500A, 0.5msec. risetime, 100kHz decay.
 Noise Rejection-Isolation (Normal Mode)  Less than 10 Volts - a 600 to 1 reduction.
 Noise Rejection-Isolation (Common Mode)  Less than 0.5 Volts - a 12,000 to 1 reduction.
 50A Common Mode Ground Surge Current Test (39dB reduction)  Ground Surge Current Reduction Factor of 88 to 1.
 50 Ohm Common Mode Insertion Test (45dB at 40MHz typical)  Common Mode Noise Power Attenuation of 31 to 1.; Common Mode Noise Voltage Attenuation of 178 to 1.
 Underwriters Laboratories  UL 1012 Listed for Power Supplies and Certified for CAN CSA-22.2, No. 107.1 Power Supplies, The Medical Grade models are UL Listed under 544 Professional Medical and Dental Equipment and cUL listed to CSA 22.2, 125 Electromedical Equipment.
 Circuit Breaker Rating (Amps)  9
 Input Connector  5-15P
 Output Connection & Isolated Ground Duplex Quantity  5-15R(2)
 Load Regulation  ±2.0%
 Inrush (1/2 Cycle Amps)  180
 Efficiency  95%
 Circuit Breaker Protection  Magnetic
 Input Plug  15 Amp
 Output Receptacles  Duplex Style IG
 Power Indicator  Green LED

Features/Benefits
  • Eliminates noise, interference and other power disturbances that could have damaging effects on today's more sophisticated Pentium® and other micro computer chips.
  • Removes harmful ground spikes while maintaining a zero ground reference at each terminal for reliable data access and transmission.
  • 10 Year Standard Product Warranty.

Pentium® is a registered trademark of the Intel Corporation.
